PROCESS LINE EQUIPMENT

High-Performance
Cut-to-Length Line

Our heavy-duty CTL line is engineered for high-precision leveling and high-speed shearing of diverse metal coils. Designed to handle massive 35-ton coils, this line is a versatile workhorse for service centers and manufacturing units.

0.3mm – 6.0mm

Width: 2000mm

Coil: 35 Tons

Request a Quote

35 T

Max Coil Weight

TECHNICAL DETAILS

Key Technical Specifications

Engineered for precision, our CTL line is built to handle the most demanding industrial requirements.

Feature	Specification
Thickness Range	0.3 mm to 6.0 mm
Maximum Width	2000 mm
Max. Coil Weight	35 Metric Tons
Materials Processed	MS, SS, GI, Copper, Brass, Aluminum
Line Speed	Up to 40–60 m/min (Depending on thickness)
Leveling Quality	High-precision 4-Hi or 6-Hi Leveler options
Accuracy	Length Tolerance: ± 0.2mm to 0.5mm

HOW IT WORKS

Machine Components & Workflow

Each station in the CTL line is purpose-built for a specific function — from safe coil loading to precision cutting and automatic stacking.

Processing Mild Steel (MS), Stainless Steel (SS), Galvanized Iron (GI), Copper, and Brass — all on a single versatile line.

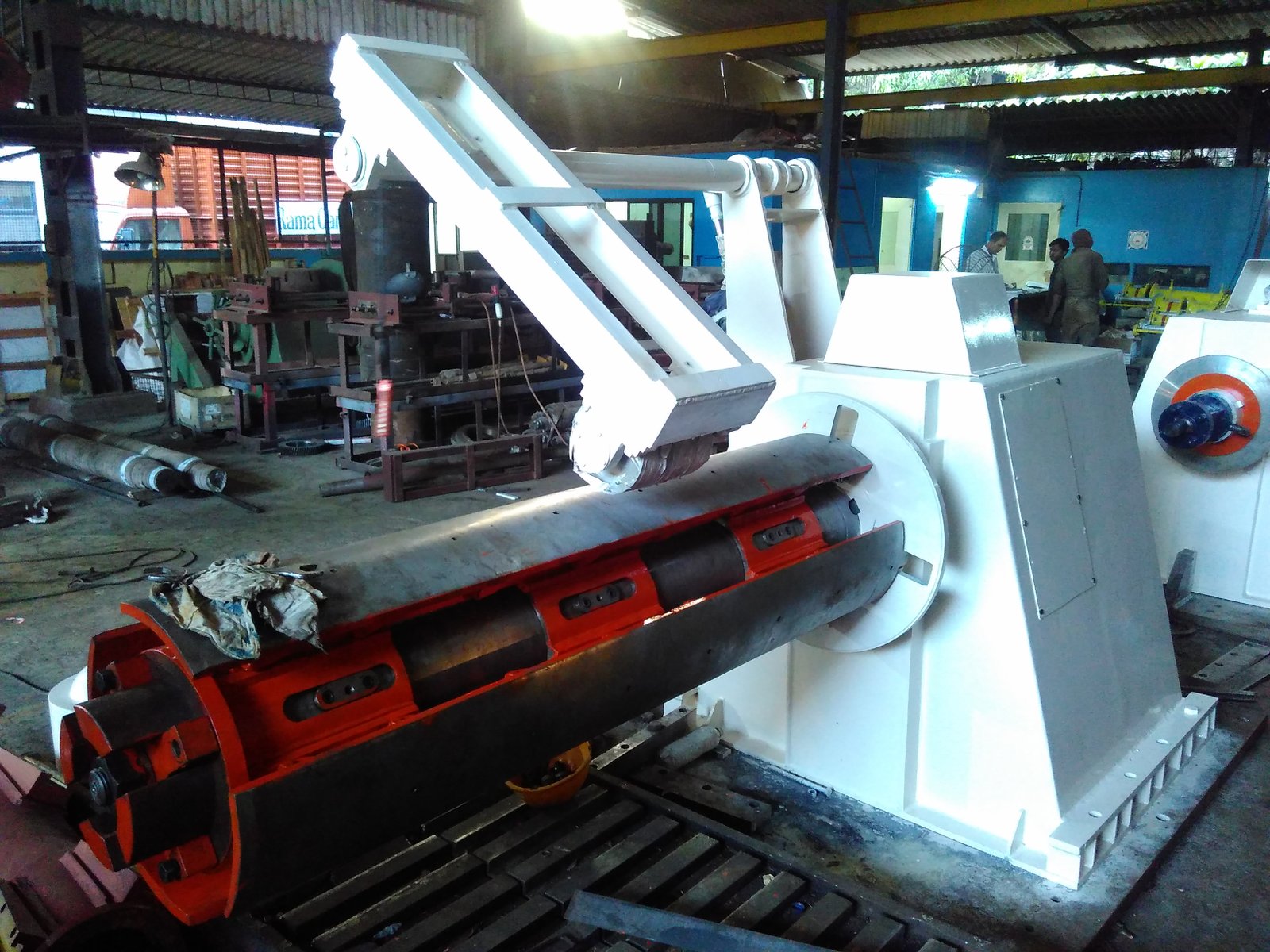

Entry Section

Features a heavy-duty Decoiler with a narrow/wide mandrel and a floor-mounted Coil Car for safe loading of 35-ton coils.

Precision Leveler

Equipped with a multi-roll leveler to eliminate coil set and crossbow, ensuring "dead-flat" sheets. Specialized rollers prevent surface marking on sensitive materials like SS or Copper.

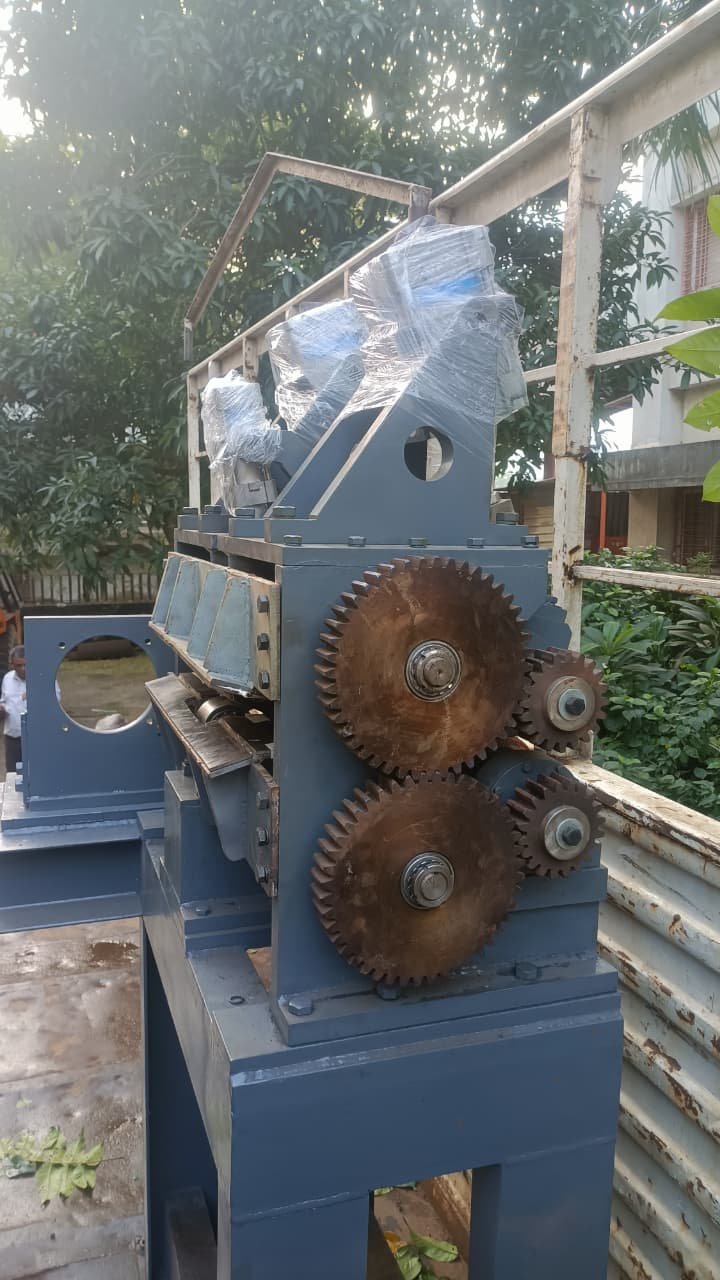

Looping Pit & Feeding

A high-speed NC Servo Feeder ensures the material is positioned with surgical precision before the cut.

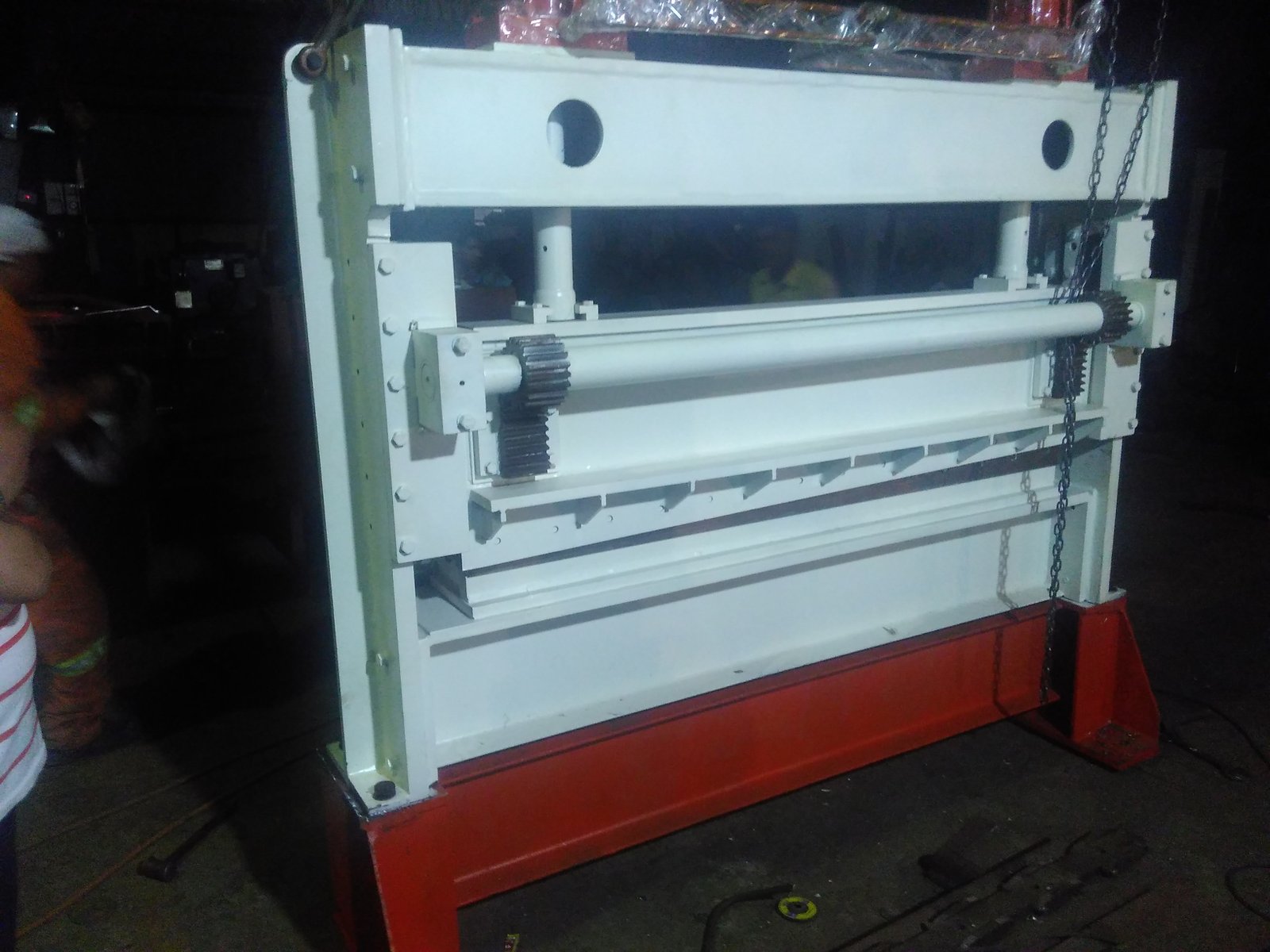

Shearing Unit

Options include high-speed Mechanical Power Shears or Pneumatic/Hydraulic Clutches for clean, burr-free edges.

Stacking System

Automatic vacuum or drop-stackers organize the finished sheets into neat bundles, ready for dispatch.

KEY ADVANTAGES

Why Choose This System?

Versatile Metallurgy

Optimized roll pressure settings allow seamless switching between "soft" metals like Copper/Brass and "tough" metals like Stainless Steel.

Heavy-Duty Build

The 35-ton capacity decoiler is reinforced to prevent vibration, ensuring consistent tracking even at maximum width and speed.

Surface Protection

Rollers are hardened and ground; optional PVC film laminators can be integrated for SS and decorative GI applications.

Full Automation

Fully integrated PLC control system with a user-friendly HMI touch screen for batch programming and real-time diagnostics.
